Fig. 3.
Download original image

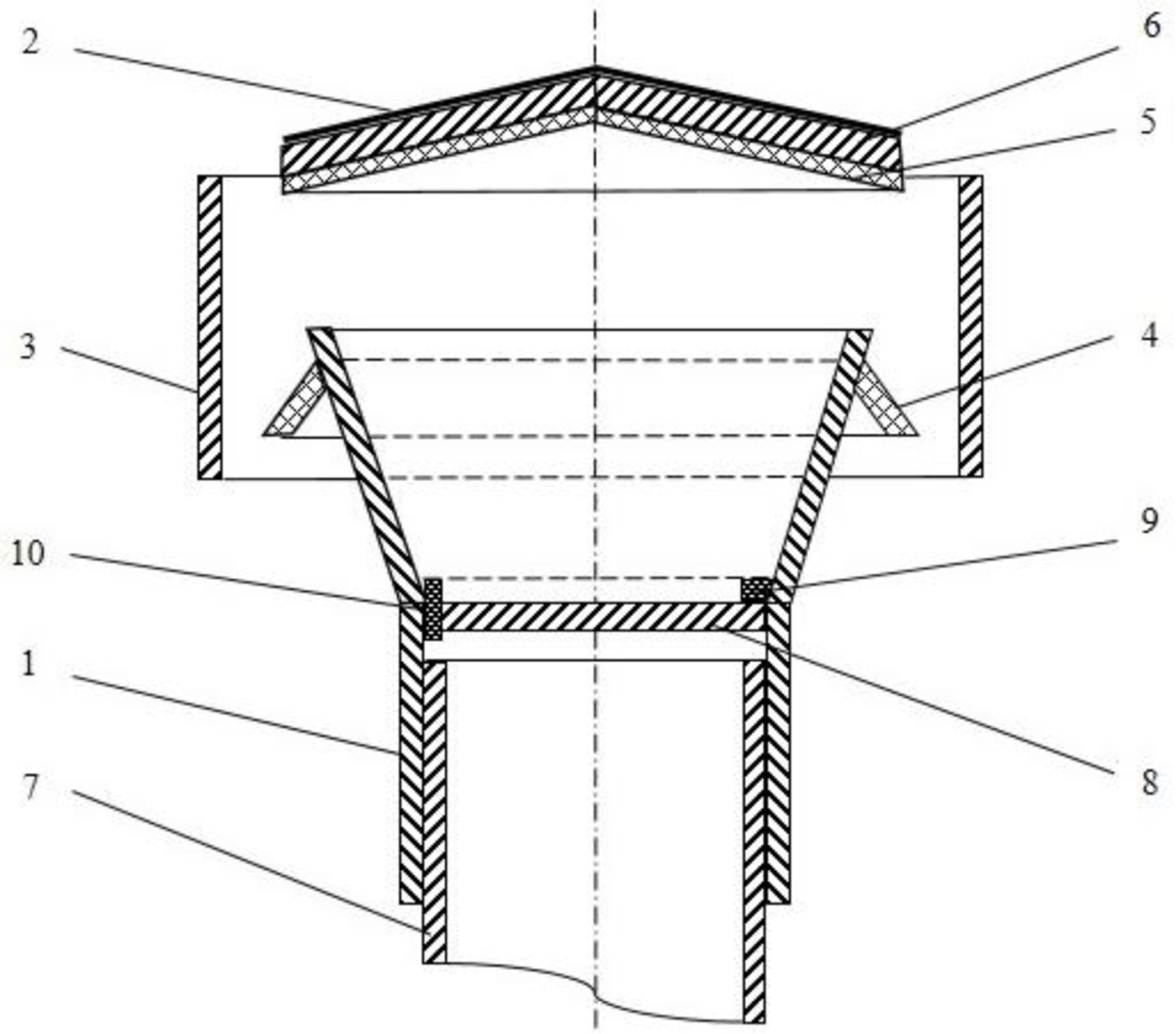

Deflector for livestock premises with increased microbial air contamination in working rooms: 1 – diffuser; 2 – shield; 3 – ring; 4 – cone shield; 5 – ventilation hood; 6 – thermal insulation layer; 7 – ventilation pipe; 8 – cartridge filter; 9 – seal; 10 – clamping element
