Figure 4.


Download original image

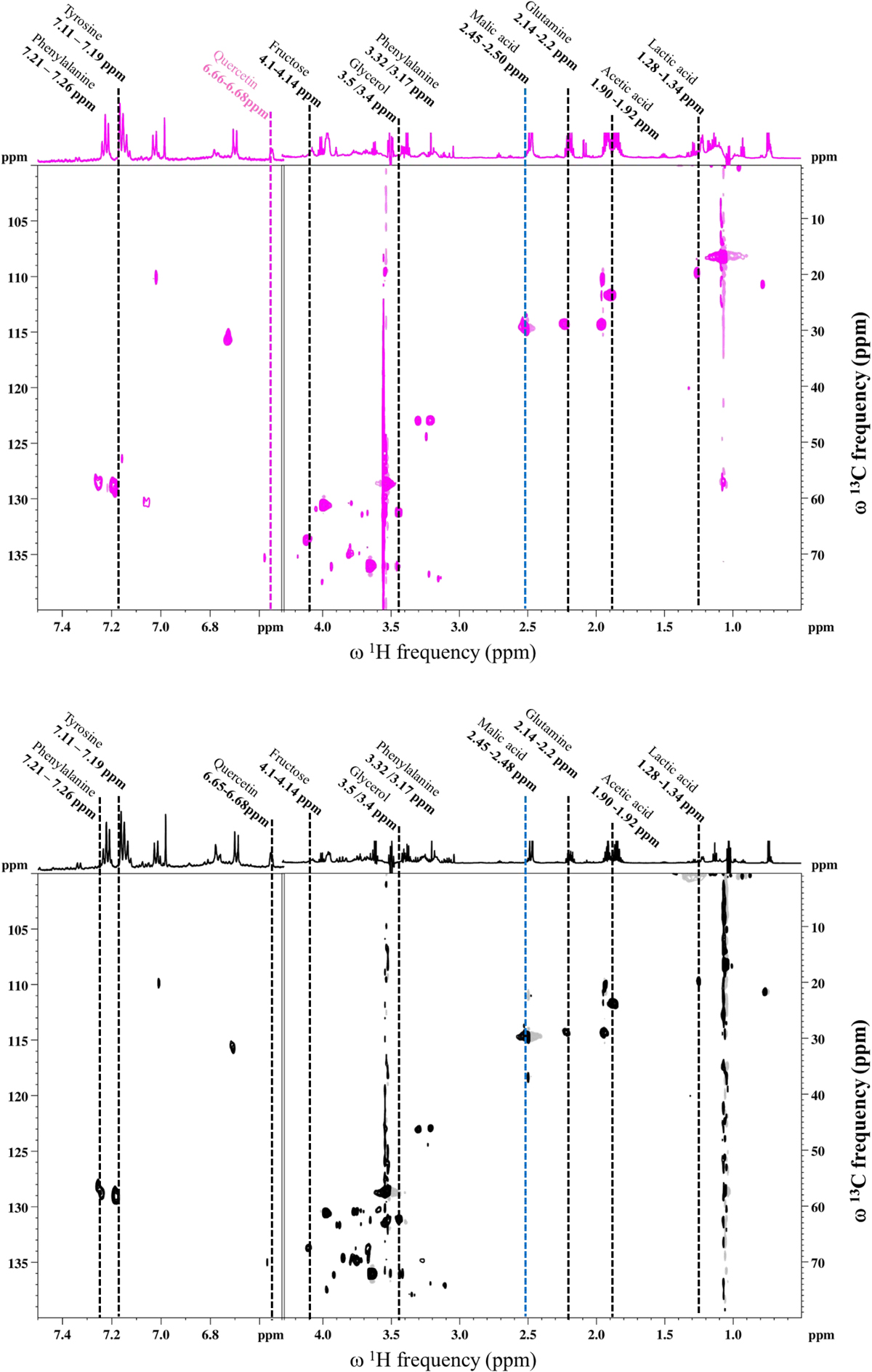

Two-dimensional 1H-13C Heternouclear Single Quantum Coherence (HSQC) experiments, applying a home-made water-to-ethanol multipresaturation scheme [12] used to detect novel metabolites with the addition of a 13C NMR dimension. Magenta: 1H-13C HSQC of large-scaled fermented wines with Saccharomyces Bayanus ex uvarum ES-U42 strain; Black: 1H-13C HSQC of large-scaled fermented wines with standard Saccharomyces Bayanus control; Blue: 1H-13C HSQC of large-scaled fermented wines with Co-inoculation of Non-Saccharomyces Candida zemplinina (Enartis Ferm) with S. cerevisiae 10N45 strain. Bottom: 1H-13C HSQC pulse program, with the addition of a multipresat module, prior to the INEPT polarization transfer module.
