Fig. 2

Download original image

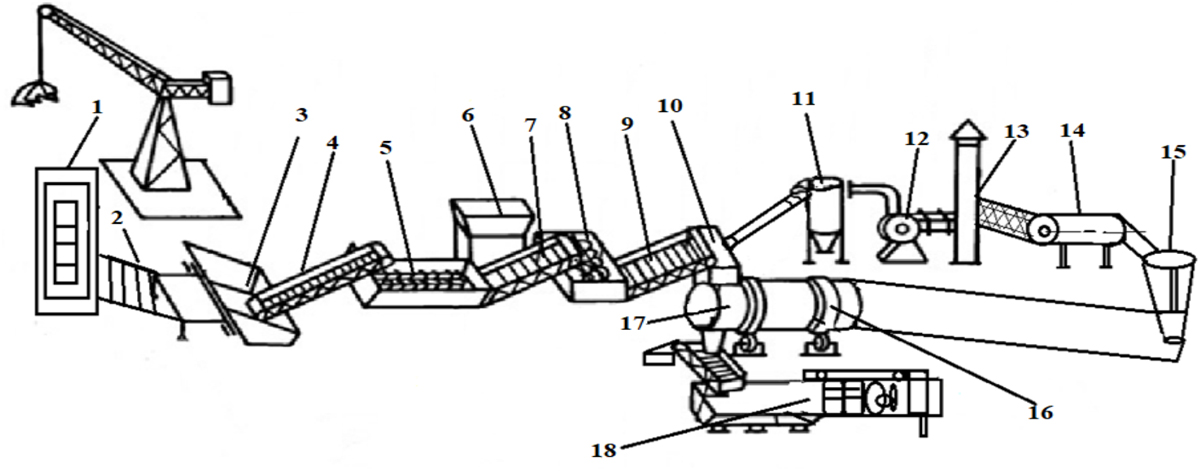

Apparatus and technological diagram of the production line for the production of dry soy milk with the addition of coconut powder and the addition of E-551: 1 – receiving soybeans on the balance of production; 2 – conveyor belt; 3 – storage hopper (with installed weights); 4 – transporter; 5 – sorting machine mesh; 6 – flushing chamber (with auger); 7 – conveyor; 8 – a sieve with a mesh diameter of 0.5-1 mm (inclined); 9 – drying chamber conveyor; 10 – drying chamber; 11 – steam generator; 12 – peeling unit; 13 – suction cyclone; 14 – fine grinding mill; 15 – component dosing hopper; 16 – mixer for uniform distribution; 17 – chilled powder storage hopper; 18 – packing machine
