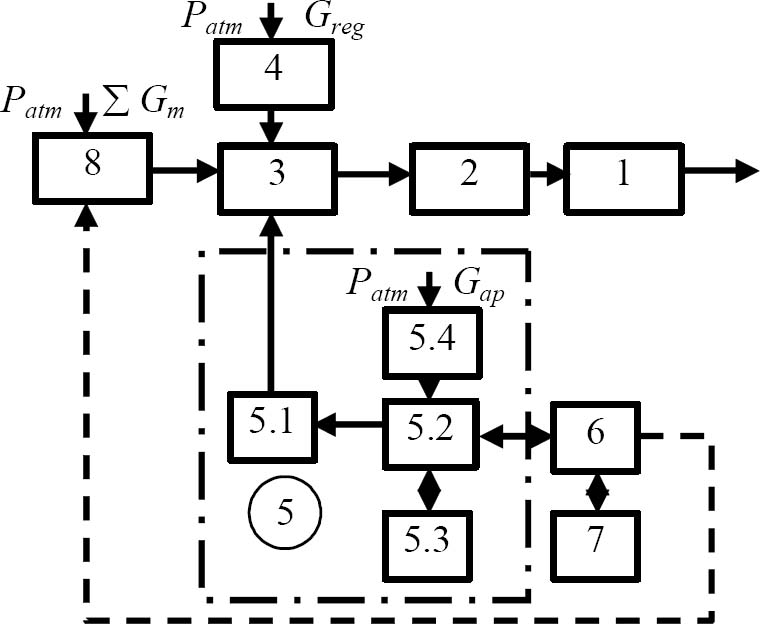

Fig. 1.


Download original image

The structure and functionally scheme of the vacuum system of milking machine: 1 – vacuum pump; 2 – vacuum reservoir; 3 – vacuum hose; 4 – vacuum gage pressure regulator; 5 – pulsator of the milking machine; 5.1 – chamber of the constant vacuum gage pressure; 5.2, 5.3 – chambers of the variable pressure; 5.4 – chamber of the atmospheric pressure; 6 – controller of the milking machine; 7 – interwall chamber of the teet cup; 8 – milk pipeline.
