Fig. 1.


Download original image

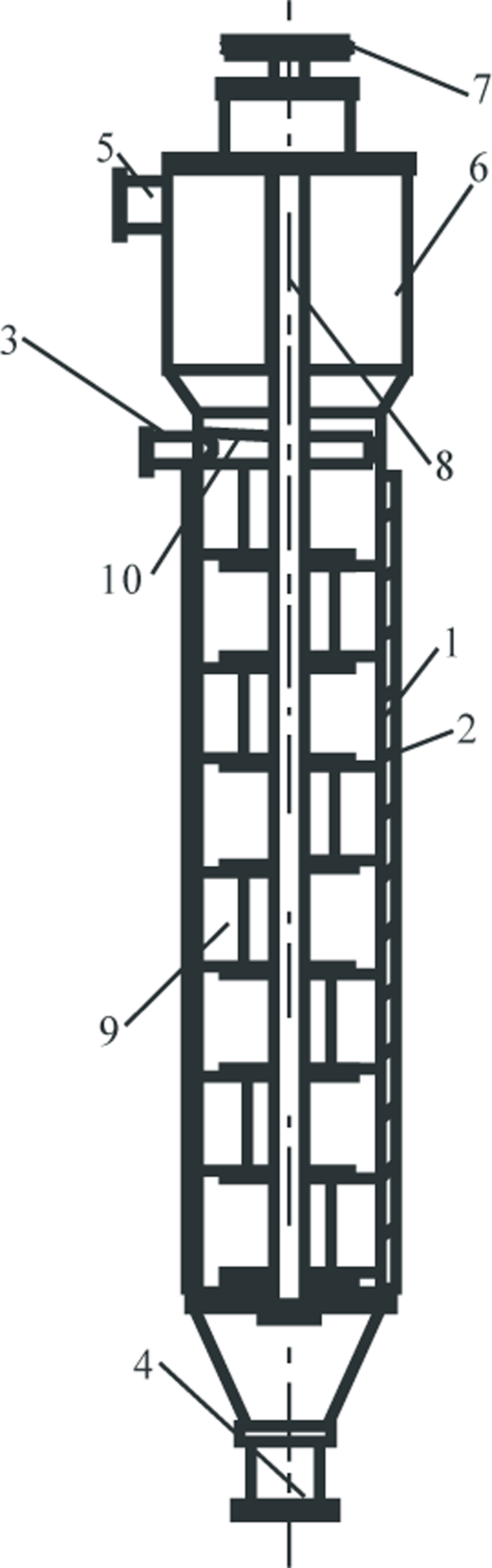

1. Advanced rotary film apparatus: 1 – a working chamber; 2 – a radiating flexible film resistive electric heater with insulating surface (RFFREH); 3, 4 – pipes for pumping and discharging of raw materials; 5 – a secondary steam discharge pipe; 6 – a separation space; 7 –an electric motor; 8 – a rotor; 9 –a hinged blade; 10 – a distribution ring.
