Fig. 3.


Download original image

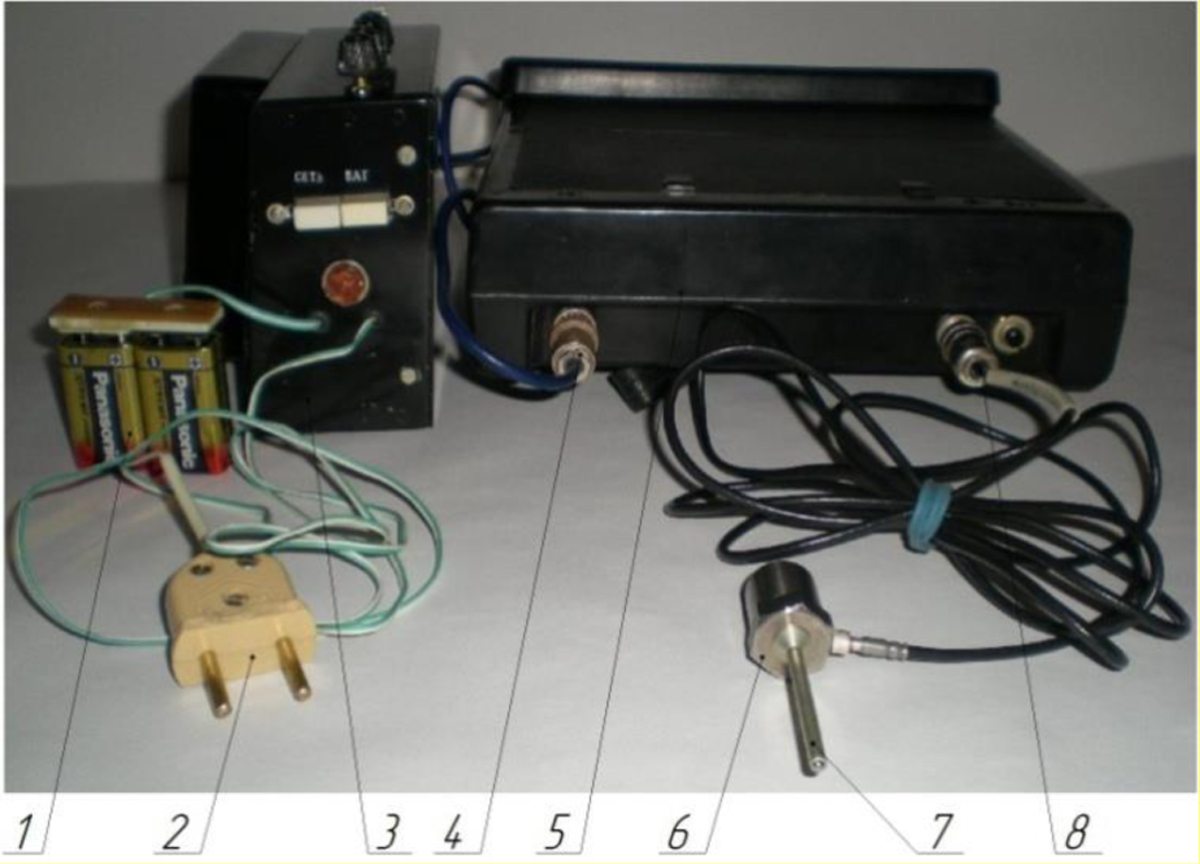

General view of the diagnostic complex to determine the residual life of the bearing assemblies: 1 – autonomous power supply; 2 – 220V power plug; 3 – adapter for determining the residual resource; 4 – output channel of the vibrometer; 5 – VVM-201 vibrometer; 6 – piezoelectric vibration sensor; 7 – manual probe; 8 – input channel of the vibrometer.
